Steady Rest for Lathe

Postby outofrshell » Wed Dec 17, 2014 1:06 pm

A while back I made a shovel handle out of aluminum tubing and to knurl it I had to improvise a steady rest made from plywood this prompted me to build a real steady rest from materials I had on hand. Dave

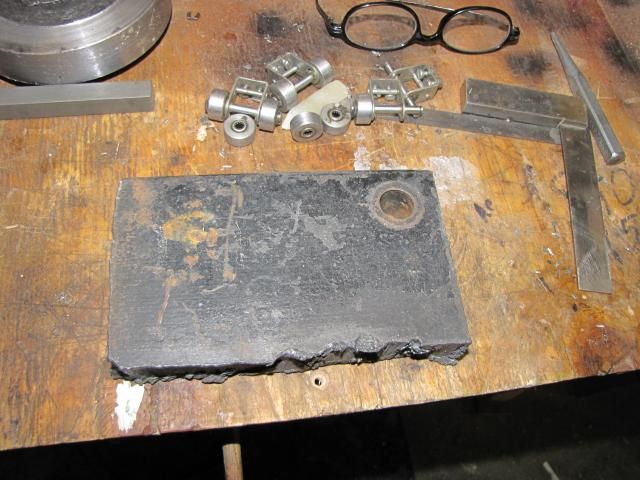

I started with this (this plate was part of an 80+year old elevator) This is the scrap left over, I had already torch cut the circle from it. The rollers are from a bank's old billing machine

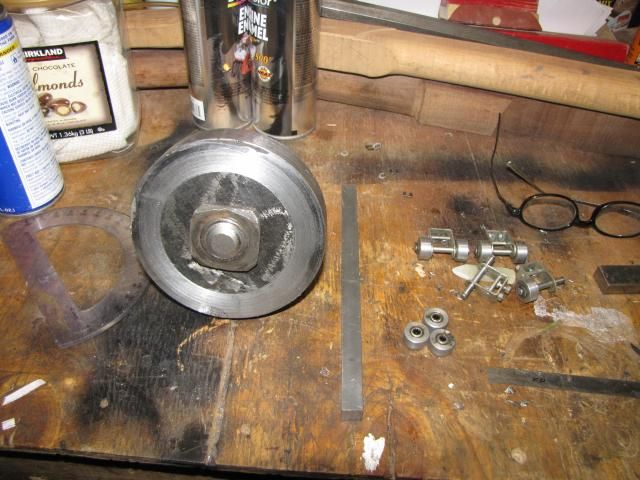

I mounted it on a 1" mandrel to turn the OD

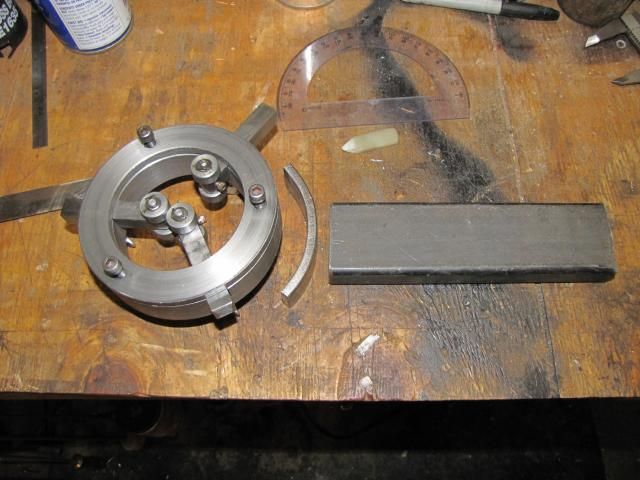

Using the 1" hole to start with I cut the ID and turned the retainer ring and milled the slots

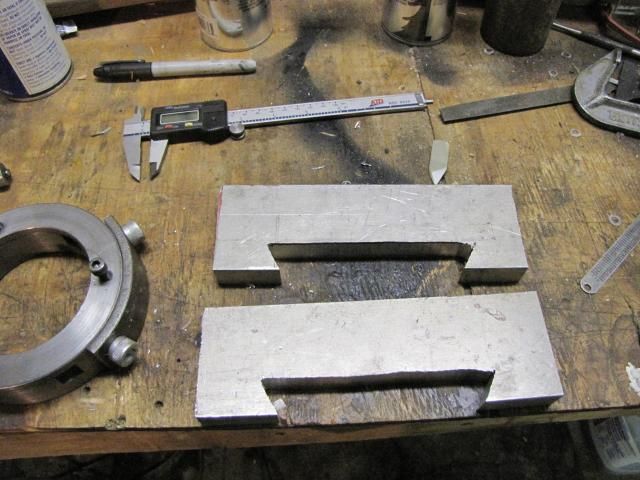

The base is 2 pieces of 3/4 X 2.5 aluminum bolted together, rough sawed with a band saw and then milled to finish
Pedestal is 1" X 2" tubing with a saddle and base plate welded to it

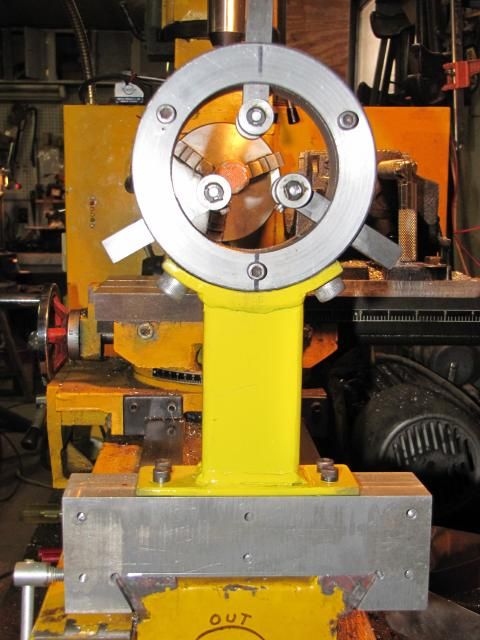

Finished project
